THE GAME-CHANGING CANON COLORADO 1650
SBR Technologies is an Authorized Dealer of the Colorado 1650

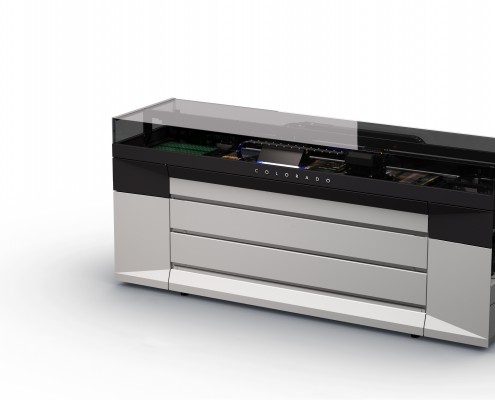

CANON COLORADO 1650 PRINTER
Powered by UVgel Technology
Experience unprecedented print speed, quality, and cost effective operation
Powered by UVgel technology, the new Canon Colorado 1650 printer fills the current gap in the roll-to-roll production market. Print Service Providers (PSPs) now have a clear choice that will delivery real production efficiency while lowering operating costs, resulting in growing profits. Print volume has continued to grow, while turnaround times continue to shrink. This technology was developed to provide a competitive edge for PSPs in this new market space.
The Canon Colorado 1650 printer is excellent for both the indoor and outdoor applications. It delivers a large color gamut, similar to solvent inks, but combines this with the environmental benefits and safety profile of latex systems.
WHAT IS UVgel?
Canon has developed a new UVgel technology that is having its debut in the Canon Colorado 1650 printer. UVgel technology is not a copy of evolution of existing technologies. It is an entirely NEW breakthrough, game-changing technology.

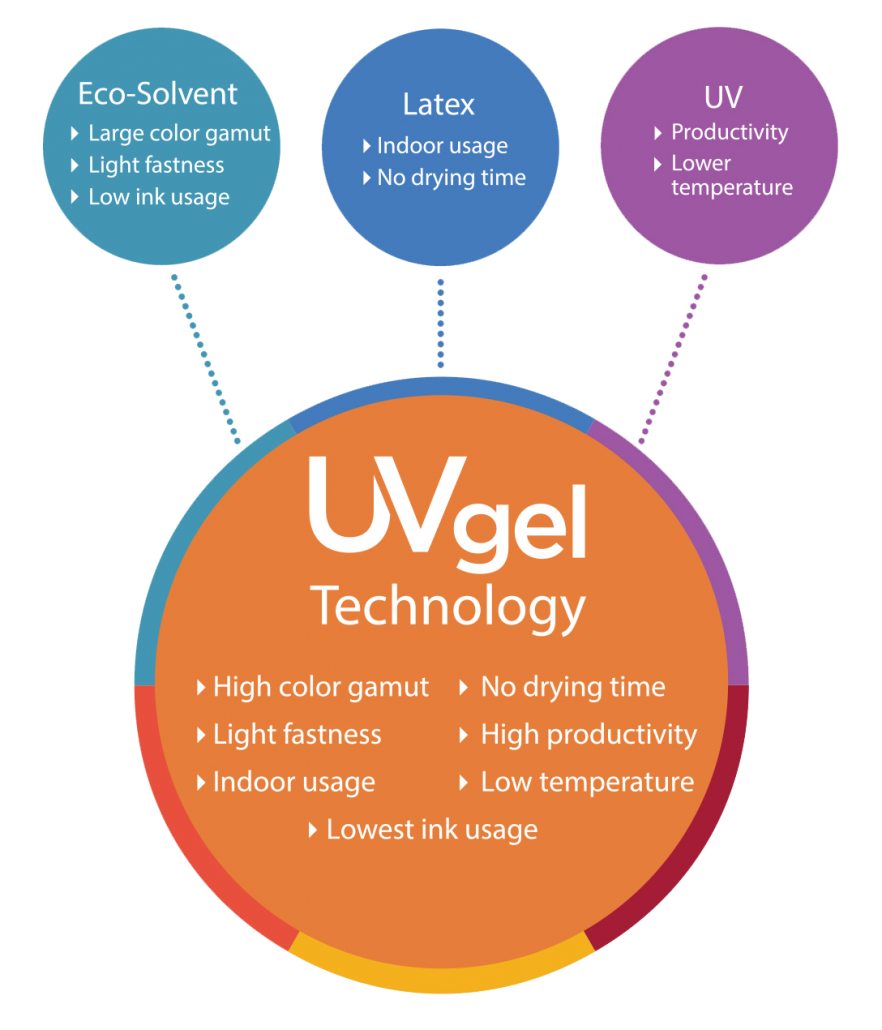

When developing UVgel technology, we analyzed current market technologies: solvent, eco-solvent, latex and UV. Each technology has its specific strengths as well as limitations. We developed this UVgel product with one thought in mind – to combine all of the strengths of each of these technologies and eliminate their limitations in one single solution. Because these features are at the core of UVgel, we are able to break the laws of printing physics and print at speeds never before possible.
Features and Benefits
INSPIRATION BY DESIGN

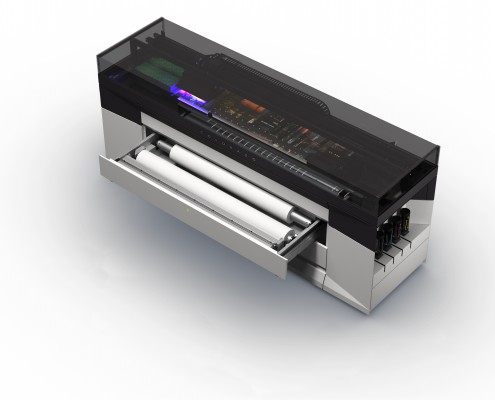

The Canon Colorado 1650 printer sets a new standard in industrialization and automation. It features a heavy-duty drawer mechanism that holds up to two rolls of media at one time, each weighing up to 110 pounds. The two rolls can be of the same media type and size or different media, and once initialized, the print engine can switch jobs between rolls without operator assistance.
Along with our automated maintenance feature, the UVgel printheads incorporate a patented on-the-fly quality assurance control with continuous nozzle monitoring to detect and correct any underperforming nozzles. Canon’s patented nozzle monitoring technology automatically checks all nozzles by using acoustic sampling and detects nozzle misfires before they actually happen.
With the robust frame and industrial motors, we developed a reliable media handling system. In addition, we’ve also added an optical system that continuously monitors the media step.
We do this by printing virtually invisible marks at the side of the print that are read by a scanner, and the system uses this information to continuously correct the media step.
ADDITIONAL FEATURES
- A radically new UV curable ink from Canon that bonds instantly on contact with the media, resulting in precise dot placement and area control for consistent high-quality images at high speed.
- UVgel offers the large color gamut of solvent inks and combines that with the environmental benefits and safety profile of latex inks.
- Ultra-thin dispersion with almost no discernible physical profile and the lowest ink consumption rate can provide up to a 40% reduction in printing costs compared to 64″ eco-solvent and latex systems.
Watch the Canon Colorado 1650 In Action
SPECIFICATIONS
| PRINTING | ||
| Printing method | UVgel piezoelectric inkjet | |
| Printing modes | Outdoor Banner HS: 1,710 sq ft/hr. (159 sq meters/hr.) Outdoor Banner mode: 1,230 sq ft/hr. (114 sq meters/hr.) Indoor Quality mode: 610 sq ft/hr. (57 sq meters/hr.) Indoor High Quality mode: 430 sq ft/hr. (40 sq meters/hr.) Backlits/Specialty mode: 215 sq ft/hr. (20 sq meters/hr.) |
|
| Print resolution | Up to 1,800 dpi | |
| Ink types | UVgel 355 ink | |
| Ink color | CMYK | |

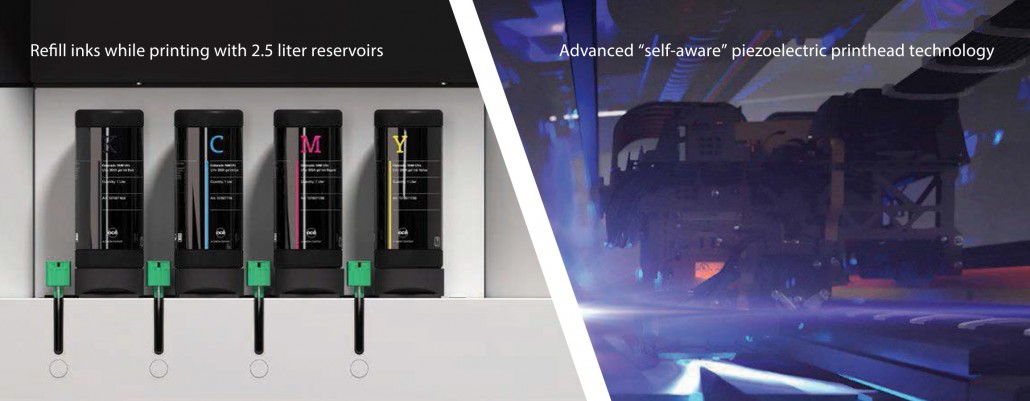

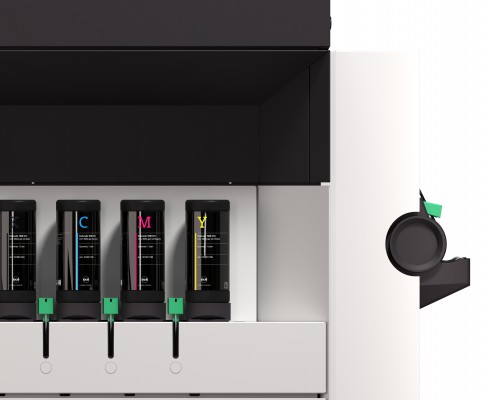

| Ink packaging | 2 x 1 liter ink bottle Ink reservoir can acommodate up to 2.5 leter per ink color Refil while printing |
|
| Printheads | UVgel 415 printhead High frequency drop-on-demand piezoelectric printhead (two per color) Canon PAINT© (Piezo Acoustic Integrated Nozzle Technology) constantly monitors and compensates for nozzle failures that can occur during printing |
|
| Automatic maintenance | Automatic maintenance performed daily in seconds | |
| Curing | UV LED | |
| MEDIA | ||
| Roll width | Up to 64″ (1,625 mm) | |
| Print margin | 0.21″ (5.3mm)* | |
| Roll weight | Up to 110 lb. (50 kg) | |
| Roll diameter | Up to 8.7″ (220 mm) | |
| Media thickness | Up to 0.03″ (0.8 mm) | |
| Number of input rolls | 2 (automatic roll-feeding and switching**) | |
| Media take-up system | Wound-in*** or out, loosely or tightly | |
| * Margin 0.43″ when yellow markers are used (recommended for print modes up to 431 ft/hr for optimized output quality) ** Except when the second media requires tight winding, then operator interaction is required. *** Available shortly after introduction via software update |
||
| FEATURES | ||
| Interface | Ethernet (100/1000 Mbit/s) | |
| SIZE AND WEIGHT | ||
| Printer dimensions (W x D x H) | 119″ x 43″ x 51″ (2,950 x 800 x 1,350 mm) | |
| Printer weight | 1,631 lb. (675 kg) | |
| WORKING ENVIRONMENT | ||
| Operation printer | 64-86˚F (18-30˚C) Recommended 68-81˚F (20-27˚C) 20-80%RH (no condensation) (recommended 30-60%) |
|
| POWER | ||
| Consumption | Up to 4kW printing | |
| Source | 2 inputs, each 200-240 V ± 10%, 50/60 Hz, 12/6 A. | |
| REGULATORY CERTIFICATIONS | ||
| Safety | LVD and IEC 62368-1 compliant, CD, TUV-GS, C-UL-US, RCM, CB | |
| Electromagnetic | EMC class A compliant (CISPR 32 and FCC part 15) incl. FCC, RCM, ICES-Cetecom | |
| Environmental | WEEE, RoHS, REACH, CE, GREENGUARD GOLD (wall paper general) | |
| SOFTWARE | ||
| Suppored RIPs | ONYX© Graphics, Caldera |
|
AFFORDABLE
Put the Colorado 1650 in your shop today for the incredible price of $1,795/month*, which includes:
* 5 Year Plan
**1.5 cents/SF after 300,000

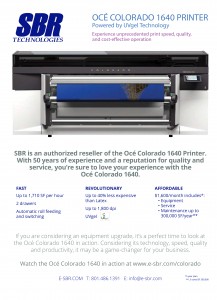

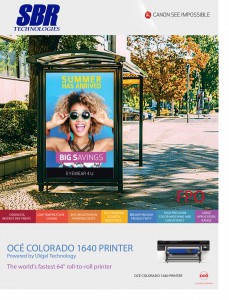

DOWNLOADS
SOLUTION = Sales + Service + Supplies
When you purchase equipment from SBR, you get a team of professionals ready to support you and ensure that you receive all of the potential performance.
